1. Refer to the exhibit. What is the effect of the configuration that is shown?
A: It configures SSH globally for all logins.
B: It tells the router or switch to try to establish an SSh connection first and if that fails to use Telnet.
C: It configures the virtual terminal lines with the password 030752180500.
D: It configures a Cisco network device to use the SSH protocol on incoming communications via the virtual terminal ports.
E: It allows seven failed login attempts before the VTY lines are temporarily shutdown.
Correct Answers: D

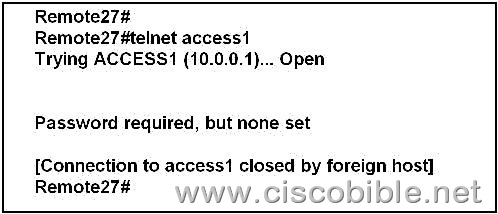

2. This graphic shows the results of an attempt to open a Telnet connection to router ACCESS1 from router Remote27. Which of the following command sequences will correct this problem?
A: ACCESS1(config)# line console 0
ACCESS1(config-line)# password cisco
B: Remote27(config)# line console 0
Remote27(config-line)# login
Remote27(config-line)# password cisco
C: ACCESS1(config)# line vty 0 4
ACCESS1(config-line)# login
ACCESS1(config-line)# password cisco
D: Remote27(config)# line vty 0 4
Remote27(config-line)# login
Remote27(config-line)# password cisco
E: ACCESS1(config)# enable password cisco
F: Remote27(config)# enable password cisco
Correct Answers: C

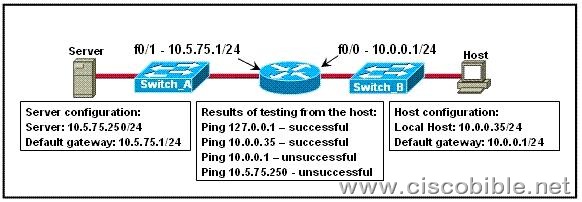

3. Refer to the exhibit. A technician is troubleshooting a host connectivity problem. The host is unable to ping a server connected to Switch_A. Based on the results of the testing, what could be the problem?
A: A remote physical layer problem exists.
B: The host NIC is not functioning.
C: TCP/IP has not been correctly installed on the host.
D: A local physical layer problem exists.
Correct Answers: D
4. An administrator issues the command ping 127.0.0.1 from the command line prompt on a PC. If a reply is received, what does this confirm?
A: The PC has connectivity with a local host.
B: The PC has connectivity with a Layer 3 device.
C: The PC has a default gateway correctly configured.
D: The PC has connectivity up to Layer 5 of the OSI model.
E: The PC has the TCP/IP protocol stack correctly installed.
Correct Answers: E
Explanation:
Every Windows based PC uses the 127.0.0.1 as the local loopback IP address. Every PC will respond to this local IP address if the TCP/IP stack is correctly installed and running on the machine. If you cannot ping the loopback address of 127.0.0.1, then something is wrong with the TCP/IP protocol stack.
